DESCRIPTION
x| Network | Technology | GSM / CDMA / HSPA / EVDO / LTE / 5G |
|---|
| Launch | Announced | 2025, July 09 |
|---|---|---|
| Status | Available. Released 2025, July 25 |
| Body | Dimensions | Unfolded: 166.7 x 75.2 x 6.5 mm Folded: 85.5 x 75.2 x 13.7 mm |
|---|---|---|
| Weight | 188 g (6.63 oz) | |
| Build | Plastic front (unfolded), glass back (Gorilla Glass Victus 2), aluminum frame | |
| SIM | Nano-SIM + eSIM + eSIM (max 2 at a time) Nano-SIM + multiple eSIM (max 2 at a time) |
|
| IP48 dust and water resistant (dust > 1mm; immersible up to 1.5m for 30 min) Armor aluminum frame |
| Display | Type | Foldable Dynamic LTPO AMOLED 2X, 120Hz, HDR10+, 2600 nits (peak) |
|---|---|---|
| Size | 6.9 inches, 111.2 cm2 (~88.7% screen-to-body ratio) | |
| Resolution | 1080 x 2520 pixels, 21:9 ratio (~397 ppi density) | |
| Protection | Mohs level 1 | |
| Cover display: Super AMOLED, 120Hz, 2600 nits (peak), 4.1 inches, 948 x 1048 pixels (Gorilla Glass Victus 2) |
| Platform | OS | Android 16, up to 7 major Android upgrades, One UI 8 |
|---|---|---|
| Chipset | Exynos 2500 (3 nm) | |
| CPU | 10-core (1x3.3GHz Cortex-X5 & 2x2.74GHz Cortex-A725 & 5x2.36GHz Cortex-A725 & 2x1.8GHz Cortex-A520) | |
| GPU | Xclipse 950 |
| Memory | Card slot | No |
|---|---|---|
| Internal | 256GB 12GB RAM, 512GB 12GB RAM | |
| UFS 4.0 |
| Main Camera | Dual | 50 MP, f/1.8, 23mm (wide), 1/1.57", 1.0µm, dual pixel PDAF, OIS 12 MP, f/2.2, 13mm, 123˚ (ultrawide), 1/3.2", 1.12µm |
|---|---|---|
| Features | LED flash, HDR, panorama | |
| Video | 4K@30/60fps, 1080p@60/120/240fps, 720p@960fps, HDR10+ |
| Selfie camera | Single | 10 MP, f/2.2, 23mm (wide), 1/3.0", 1.22µm |
|---|---|---|
| Features | HDR | |
| Video | 4K@30/60fps |
| Sound | Loudspeaker | Yes, with stereo speakers |
|---|---|---|
| 3.5mm jack | No | |
| 32-bit/384kHz audio |
| Comms | WLAN | Wi-Fi 802.11 a/b/g/n/ac/6e/7, tri-band, Wi-Fi Direct |
|---|---|---|
| Bluetooth | 5.4, A2DP, LE | |
| Positioning | GPS, GALILEO, GLONASS, BDS, QZSS | |
| NFC | Yes | |
| Radio | No | |
| USB | USB Type-C 3.2, OTG |
| Features | Sensors | Fingerprint (side-mounted), accelerometer, gyro, proximity, compass, barometer |
|---|---|---|
| Circle to Search Samsung DeX (desktop experience support) |
| Battery | Type | 4300 mAh |
|---|---|---|
| Charging | 25W wired, QC2.0, 50% in 30 min 15W wireless 4.5W reverse wireless |

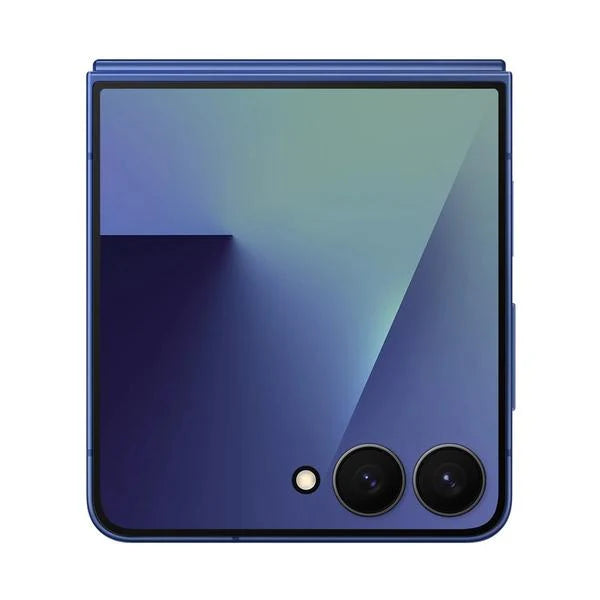

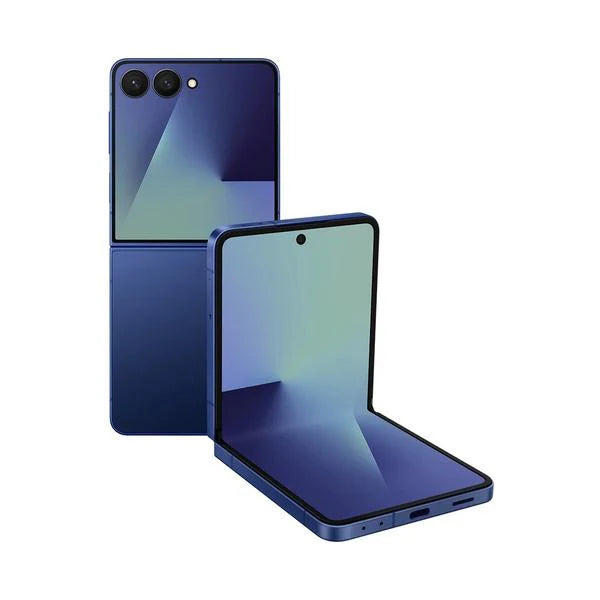

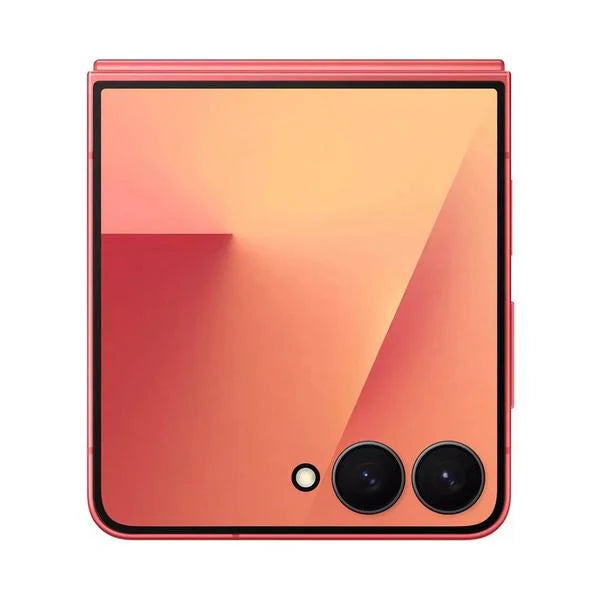

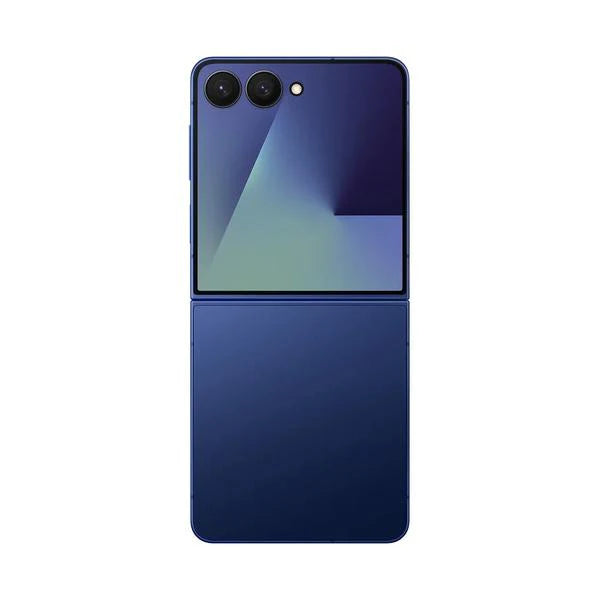

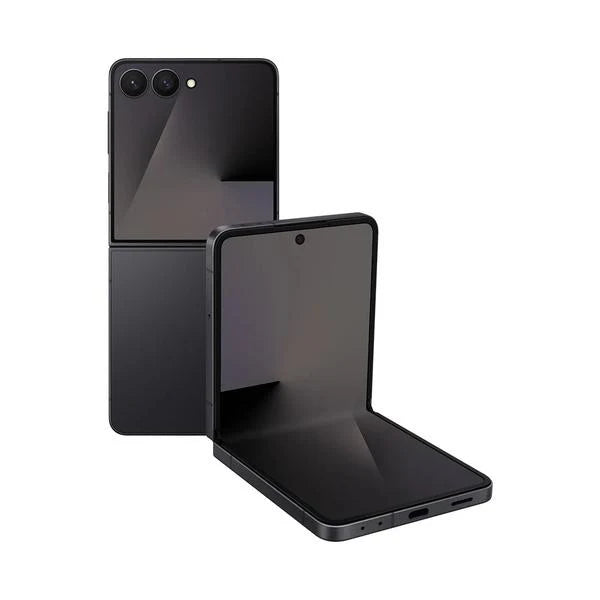

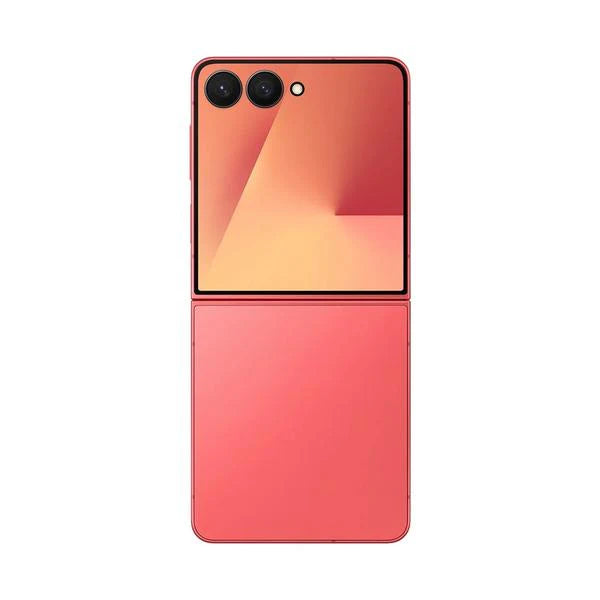

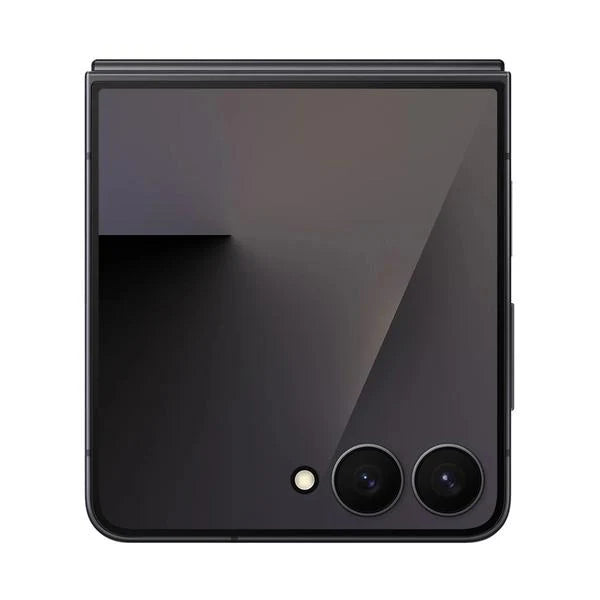

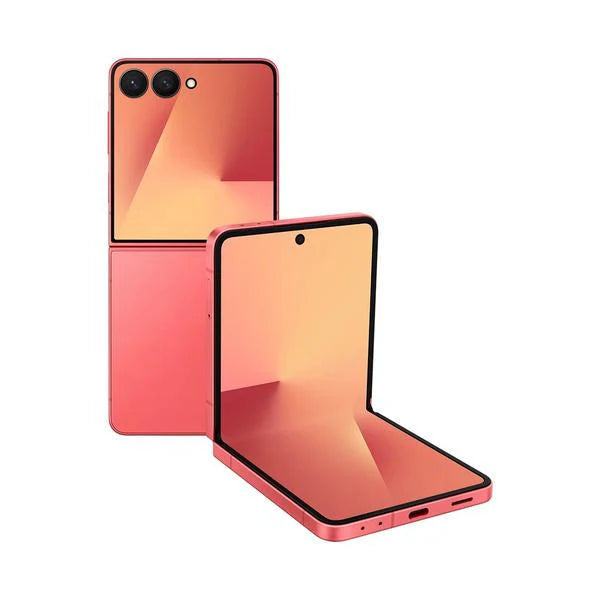

| Misc | Colors | Blue Shadow, Jet Black, Coral Red, Mint |
|---|---|---|
| Models | SM-F766B, SM-F766B/DS, SM-F766U, SM-F766U1 | |
| SAR | 0.86 W/kg (head) 1.14 W/kg (body) | |
| SAR EU | 0.69 W/kg (head) 1.22 W/kg (body) |
